High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines

1 шт.
MOQ
negotiable
цена
High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Имя: Изолированный затягиватель
Пункт №.: 14105-14107
Модель: SJJY-1
Номинальный подъем/вытягивание: 10/5
Толщина ленты х длина: 5х2300мм
Минимальная длина: 410-480 мм
Максимальная длина: 1210-1400 мм
Масса: 30,3-4,5 кг.
Выделить:

High Voltage Insulated Tightener

,

Safe Live Line Tightener

,

Fiberglass Insulating Boom Tightener
Основная информация
Место происхождения: Нинбо
Фирменное наименование: Suntech
Сертификация: ISO
Номер модели: SJJY-1
Оплата и доставка Условия
Упаковывая детали: фанерный корпус
Время доставки: 3-7 дней
Условия оплаты: Л/К, Т/Т
Поставка способности: 1000 ПК в месяц
Характер продукции

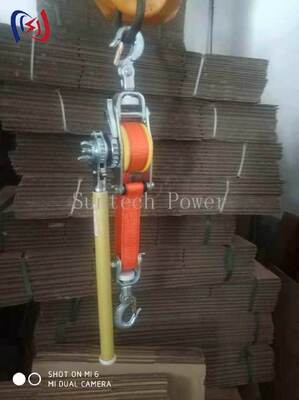

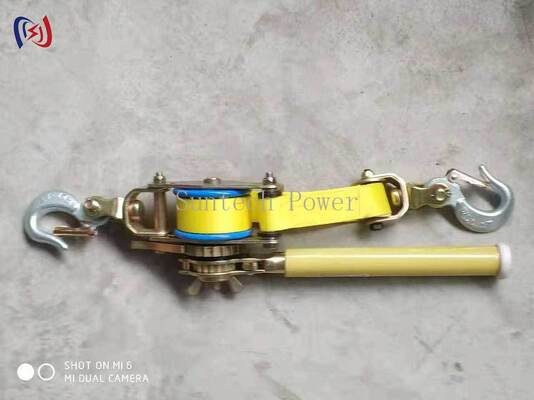

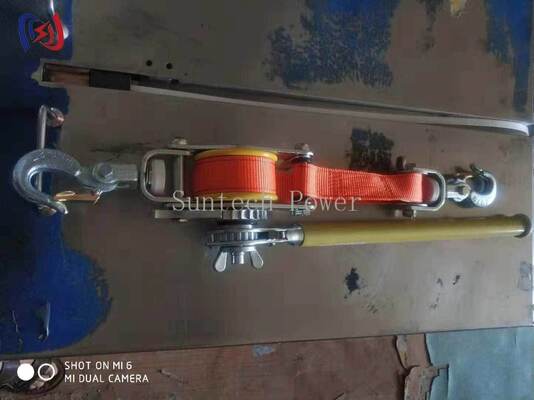

High Voltage Insulated Tightener for Safe Live Line Work on Overhead Distribution and Transmission Lines
Product Overview
The Insulated Tightener is a critical piece of specialized equipment designed to enable safe and efficient work on or near energized electrical conductors. It serves as a tensioning and pulling tool that allows line crews to tighten, slacken, or reposition conductors while maintaining a safe insulating barrier between the worker and the live line.
Technical Specifications
Item No. Model Rated Lifting/Pulling Webbing thickness*length(mm) Min length(mm) Max length(mm) Weight(kg)
14105 SJJY-1 10/5 5*2300 410 1210 3.3
14106 SJJY-1.5 15/7.5 6*2300 480 1400 4.2
14107 SJJY-2 20/10 6*2300 480 1400 4.5
High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines 0
Key Features and Benefits
  • Essential for Live Line Safety
    Provides a safe working method for tasks on energized lines with high dielectric strength insulating materials that prevent current from passing to the ground through the tool and worker.
  • High Strength and Dielectric Insulating Boom
    Constructed with fiberglass reinforced plastic for excellent mechanical strength and high dielectric properties to withstand electrical stress.
  • Efficient Mechanical Advantage System
    Incorporates pulley block or ratchet mechanisms allowing single workers to apply significant conductor tension with low input force.
  • Secure and Non-Damaging Conductor Grip
    Engineered to hold conductors firmly without causing damage to surface, strands, or protective coatings.
  • Compatibility with Hot Stick Tools
    Features standardized connection points for attachment to insulated hot sticks, enabling safe distance operation.
  • Durability for Rugged Field Use
    Built to withstand harsh outdoor conditions with resistance to impact, UV degradation, moisture, and temperature extremes.
  • Compliance with International Safety Standards
    Rigorously tested and certified to meet international standards for dielectric tests, mechanical load tests, and voltage performance.
  • Enables Work Without Service Interruption
    Allows maintenance, repairs, and new connections without taking customers offline, improving system reliability.
  • Versatility in Utility Applications
    Essential for pulling new conductors, replacing insulators, adjusting sag, removing jumper lines, and storm restoration work.
  • Investment in Safety and Efficiency
    Pays for itself by enabling safe work practices that prevent accidents and allow work without costly outages.
By choosing a professionally rated and certified Insulated Tightener, you are making a direct investment in the safety of your workforce and the reliability of the power network you maintain.
