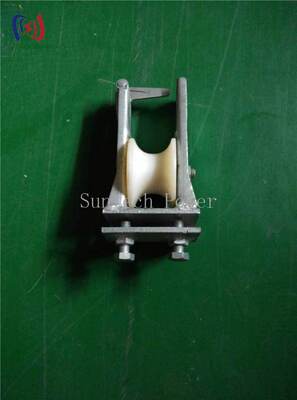

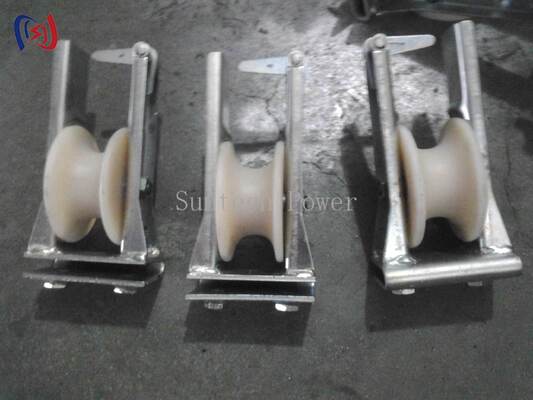

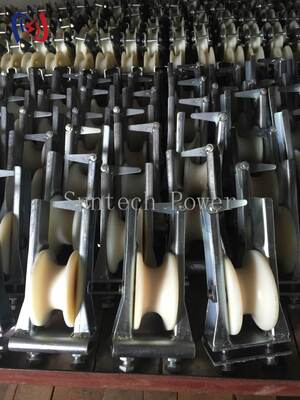

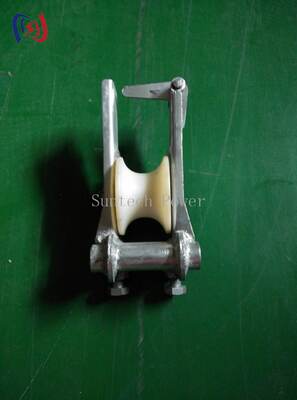

Professional High Tension Stringing Block for OPGW Installation with 5-20KN Rated Load

1 шт.
MOQ
negotiable
цена
Professional High Tension Stringing Block for OPGW Installation with 5-20KN Rated Load
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Имя: Натяжной блок Swerve Skyward
Модель: SHC
Применимый: LGJ25-400
Номинальная нагрузка: 5-20КН
масса: 1,7-3,8 кг
Гарантия: 1 год
Основная информация
Место происхождения: Нинбо
Фирменное наименование: Suntech
Сертификация: ISO
Номер модели: SHC
Оплата и доставка Условия
Упаковывая детали: Фанерный чехол
Время доставки: 3-7дней
Условия оплаты: Л/К, Т/Т
Поставка способности: 3000 ПК/месяц
Характер продукции
Professional Swerve Skyward Stringing Block for High Tension Overhead Conductor and OPGW Installation
The Swerve Skyward Stringing Block is a heavy-duty, professional-grade installation tool specifically engineered for the demanding challenges of modern overhead power line construction. It is a critical component in tension stringing systems designed to safely and efficiently install conductors, Optical Ground Wire (OPGW), and other cables.
Product Specifications
Item Number Model Rated Load (KN) Dia×Width Applicable Conductor ACSR Weight (kg) Remark
10231 SHC-0.5 5 Φ80X50 25-185 1.5 Aluminium sheave
10232 SHC-2 20 φ120X60 35-240 3
10221 SHC-1 10 ≤ 400 4
10233 SHCN-0.5 5 Φ80X50 25-185 1.1 Nylon sheave
10234 SHCN-2 20 φ120X60 35-240 2.3
10222 SHLN-1 10 ≤ 400 3
Key Features & Benefits
Minimizes Friction for Efficient High-Tension Pulls: Large-diameter sheave and high-quality bearings drastically reduce rolling resistance, enabling longer continuous pulls with precise cable tension control.
Provides Unmatched Protection for Sensitive Cables: Smooth, contoured groove cradles cables without damaging point loads, especially critical for OPGW and fiber optic cable protection.
Essential for Modern High-Capacity Transmission Lines: Supports large-diameter conductors, bundled configurations, and extreme tensions of extra-high-voltage (EHV) lines.
Engineered for Extreme Durability and Long Service Life: Corrosion-resistant aluminum alloys and sealed bearings withstand harsh field conditions for reliable performance.
Enhances Crew Safety During Critical Operations: Prevents sudden cable snags and derailments, creating a safer environment during high-tension stringing operations.
Specifically Optimized for OPGW Installation: Meticulously designed to protect delicate glass fibers within OPGW cables, preventing signal attenuation.
Improves Project Efficiency and Lowers Costs: Faster pulling speeds, reduced fuel consumption, and superior cable protection eliminate expensive rework.
Professional Grade for Utility Contractors: Demonstrates commitment to industry best practices and technical capability for complex power line projects.
Supports Resilient Power Grid Development: Contributes to building more reliable transmission infrastructure capable of handling peak demands and severe weather.
Strategic Investment in Construction Capability: Protects multi-million-dollar cable assets while ensuring personnel safety and minimizing project risks.
The Swerve Skyward Stringing Block is a precision-engineered solution that balances robust durability with friction-reducing performance to protect valuable assets, enhance safety, and drive efficiency. It is an indispensable tool for professionals building and maintaining high-voltage networks, ensuring projects are completed to the highest standards of quality, reliability, and longevity.
