Ending Block for Conductor Tightening | 30–80KN Open Side Plate Stringing Pulley

1 шт.
MOQ
negotiable
цена
Ending Block for Conductor Tightening | 30–80KN Open Side Plate Stringing Pulley
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Имя: Заключительный блок
Модель: Шнур
Номинальная нагрузка: 30-80 кун
Диаметр шкива: 140-180мм
Шид ширина: 36-56мм
Масса: 5,3-16,5 кг
Выделить:

conductor stringing block with side plate

,

30-80KN stringing pulley

,

open side plate conductor tightener
Основная информация
Место происхождения: Нинбо
Фирменное наименование: Suntech
Сертификация: ISO
Номер модели: Шнур
Оплата и доставка Условия
Упаковывая детали: фанерный корпус
Время доставки: 3-7дней
Условия оплаты: Т/Т, Л/К
Поставка способности: 500 шт/месяц
Характер продукции

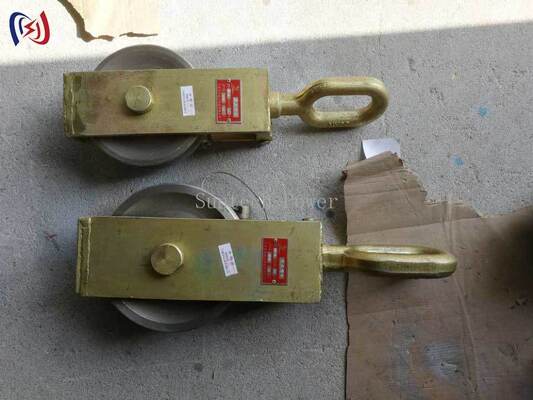

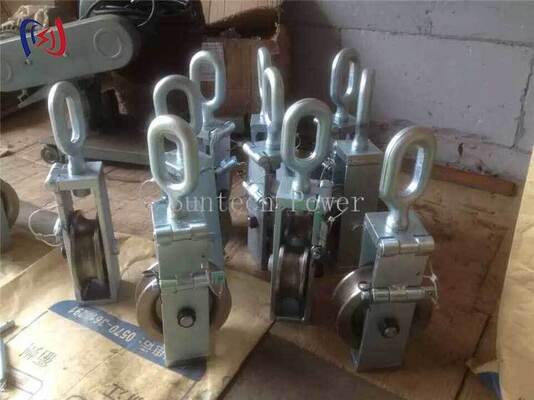

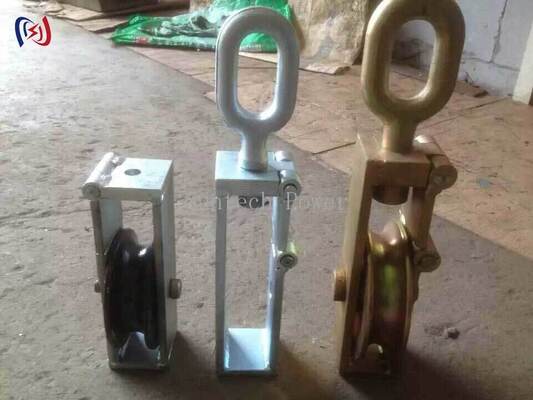

Ending Block for Conductor Tightening | 30–80KN Open Side Plate Stringing Pulley
Product Overview

The Ending Block is a single sheave pulley block designed for conductor tightening, terminal stringing, and transmission line construction. It provides controlled guiding and convenient conductor placement at the end section of line construction.

Available in 30KN, 50KN, and 80KN rated load models with sheave diameters from Φ140mm to Φ180mm and widths from 36mm to 56mm. The openable side plate facilitates easy conductor placement during field operations.

Technical Specifications
Item Number Model Rated Load Sheave Diameter Sheave Width Weight
12191 SH30J 30KN Φ140mm 36mm 5.3kg
12192 SH50J 50KN Φ160mm 48mm 9.0kg
12193 SH80J 80KN Φ180mm 56mm 16.5kg
Product Details
Product Name Ending Block
Model Options SH30J / SH50J / SH80J
Rated Load 30KN / 50KN / 80KN
Sheave Diameter Φ140mm / Φ160mm / Φ180mm
Sheave Width 36mm / 48mm / 56mm
Weight 5.3kg / 9.0kg / 16.5kg
Certification ISO9001
Packaging Wooden Case
Warranty 1 Year
Feature Openable side plate
Application Areas
  • Transmission line construction
  • Overhead conductor stringing
  • Conductor tightening work
  • Terminal pulley applications
  • Power line installation
  • Utility construction projects
  • Grid construction and maintenance
  • Wire tensioning operations
  • Field line construction requiring quick conductor placement
Key Advantages
  • 30KN to 80KN Rated Load Options - Multiple models for different conductor tightening requirements
  • Φ140mm to Φ180mm Sheave Diameter - Supports various line construction and conductor guiding needs
  • Openable Side Plate - Easy conductor placement during field operations
  • Single Sheave Design - Simple guiding path for terminal conductor tightening
  • Transmission Line Construction - Specifically designed for power line stringing tools
  • Portable Models - Weights from 5.3kg to 16.5kg for flexible field handling
Related Keywords
Ending Block Terminal Pulley Block Conductor Tightening Block Conductor Stringing Block Open Side Plate Pulley 30KN Ending Block 50KN Conductor Pulley 80KN Terminal Pulley Transmission Line Stringing Block Power Line Construction Pulley
Frequently Asked Questions
What is an Ending Block used for?
An Ending Block is used for tightening conductor wire and guiding the conductor at the terminal section of transmission line stringing work.
Is this product suitable for conductor stringing?
Yes. It is suitable for conductor stringing, conductor tightening, and overhead power line construction.
What rated load options are available?
The available rated load options are 30KN, 50KN, and 80KN.
What are the sheave diameters?
The sheave diameters are Φ140mm, Φ160mm, and Φ180mm, depending on the model.
What is the main feature of this Ending Block?
The main feature is the openable side plate, which makes conductor placement more convenient during line construction.
What is the weight range of this product?
The weight ranges from 5.3kg to 16.5kg, depending on the selected model.
Can it be used as the last pulley block in line construction?
Yes. According to the product information, it is used as a terminal pulley block for tightening conductor wire at the end section of line construction.
